CKXD series sonic soot blower
After purifying the air filter, the compressed energy of the compressed air is converted into sound energy through a sound wave generator, modulated into sound waves. The sound waves are amplified in an orderly manner through a radiation horn and act on the heated surface at a certain frequency and period, causing the accumulated dust to loosen and detach.
Key words:
Classification:
E-mail:
Product Description
Using frequency sweeping technology:Frequency bands can be set arbitrarily, achieving stepless operation within the frequency band. Structural characteristics: the size is relatively small, does not occupy channels and platforms,

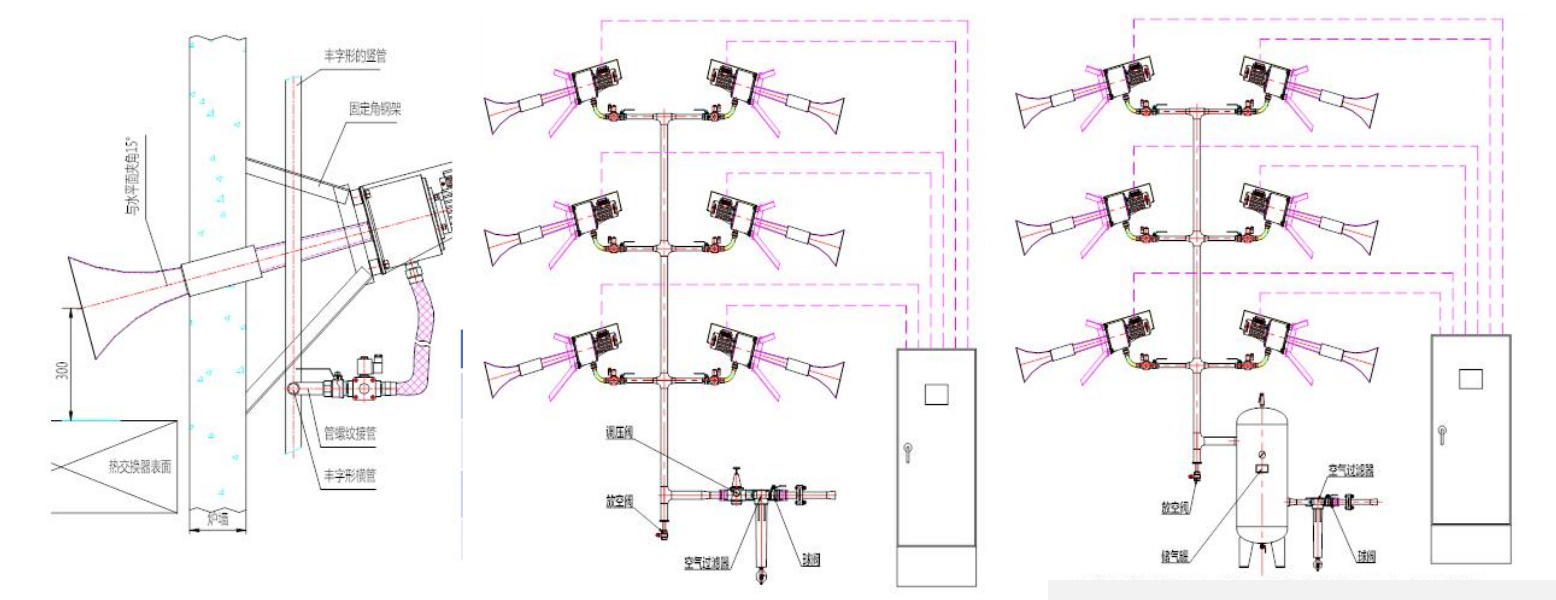

Operating characteristics:It is better to adopt group operation mode, which can significantly improve sound pressure level. During equipment maintenance, it is only necessary to remove the drive motor and replace its lubricant.
Control characteristics:Using PLC control mode can achieve human-machine dialogue, allowing arbitrary setting of parameters for each acoustic blower to obtain the ideal sound frequency.
Good safety:Noise characteristics meet the standards of "Industrial Enterprise Noise Control Design Specifications".
| Technical parameters | ||||||
Parameters | Sound source frequency bandwidth | Sound power level | Air source pressure | Air consumption | Motor explosion-proof grade and protection level | |
Value | 20~360 | ~155 | 0.4~0.8 | 1.5~3 | DIBT4、 | |
Parameters | Effective range m | Electromagnetic valve power | Air source temperature ℃ | Pressure dew point ℃ | Heat resistance temperature ℃ | Ambient noise |
Value | 5~8 | 15 | 5 | 10 | ~1000 | ~85 |
